How to Install Engineered Hardwood Flooring: Acclimate, Lay and Trim
Plan an engineered hardwood floor from subfloor prep and acclimation through nail-down or glue-down installation, expansion gaps, stair nosings and transitions.
Engineered hardwood gives a real wood wear layer on a plywood core that moves far less than solid boards, which is why it suits Ontario homes with forced-air heat and humid summers. It still moves. Acclimation, a stable subfloor and expansion gaps at every wall and fixed object are what keep a wide-plank oak floor flat through January.

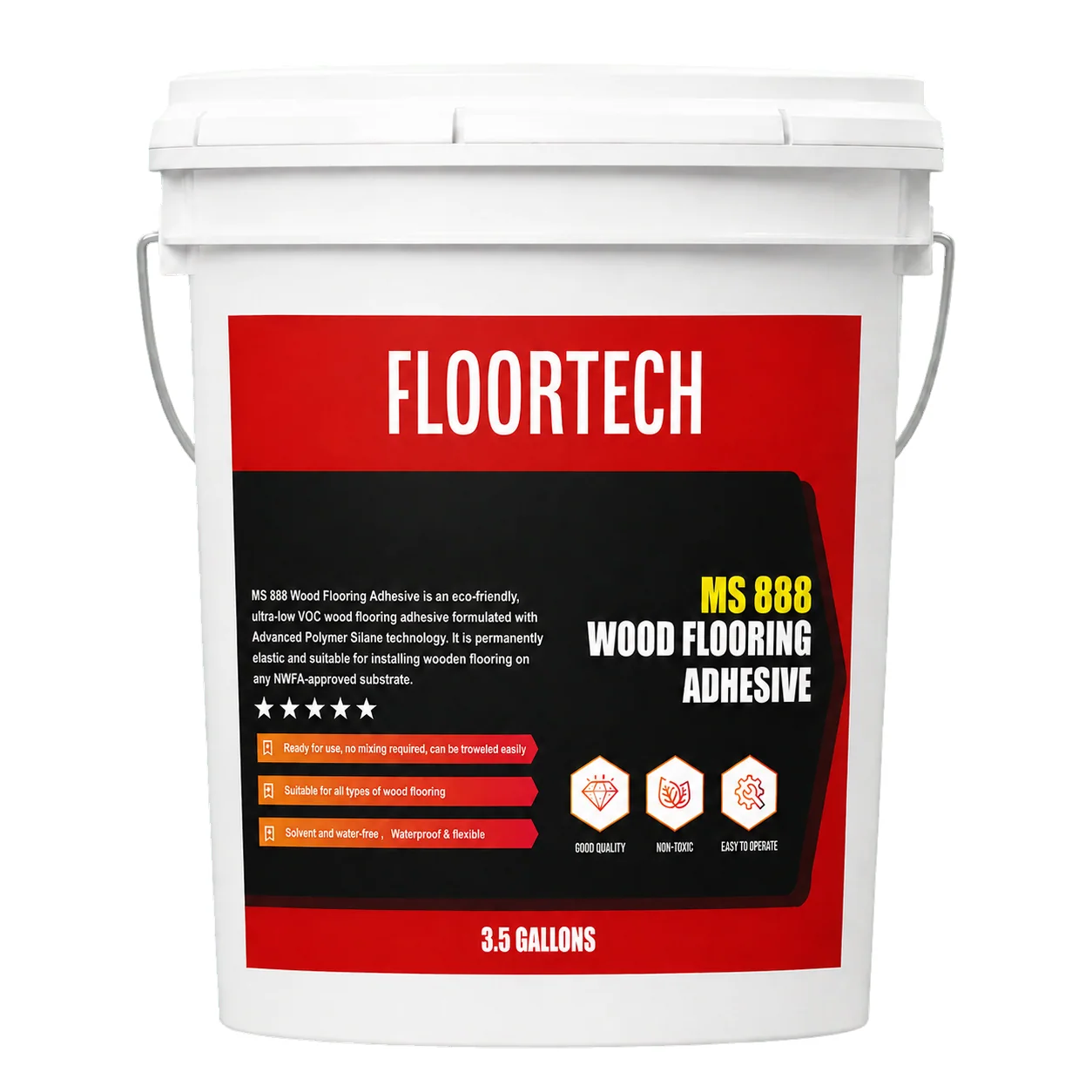

Choose the installation method with the subfloor. Over plywood or OSB, nailing with 18-gauge cleats through the tongue is fast and quiet underfoot. Over concrete, or where nails cannot be used, a moisture-cure polymer adhesive bonds the planks directly and controls vapour at the same time. Floating installations are possible with some products but are the least solid-feeling choice for wide planks.
Plan the direction and the start wall. Boards usually run parallel to the longest wall or toward the main light source, and across floor joists for a nail-down floor. Start along the straightest, most visible wall and let any taper fall against cabinets or a closet wall.
Measure the project
Measure each room and hallway separately, including closets, and add them up. Add 8% waste for a straight lay and 12% for rooms with angles or when matching grain across a batch.
Divide the area with waste by the square footage per carton on the product page and round up to a whole carton. Keep one spare carton for repairs.
Wood subfloor should read under 12% on a pin meter and within 4 points of the flooring. Concrete needs a calcium chloride or RH test to the adhesive maker’s limit.
The subfloor must be within 3/16 in over 10 ft. Sand high spots and fill lows with a floor patch before any plank is laid.
Leave the gap the manufacturer specifies at every wall, cabinet, pipe and doorway, usually 1/2 in, which baseboard and shoe moulding cover.
Shop the material list
Choose products that match the exact room conditions and manufacturer instructions. These catalogue picks give you a practical starting point.
Have these ready
- Tape measure and chalk line
- Pin moisture meter
- 6 ft straightedge
- Flooring nailer for 18-gauge cleats with mallet, or a notched adhesive trowel
- Mitre saw and jigsaw
- Table saw for rip cuts
- Tapping block and pull bar
- 1/2 in spacers
- Pneumatic brad nailer for the first and last rows
- Knee pads
- Vacuum
- Mineral spirits or adhesive wipes for glue-down
Build it in the right order
Acclimate the flooring in the room
Bring the cartons into the room where they will be installed and stack them flat, off the floor, with air space between rows. Run the heating or cooling at normal living settings for at least 72 hours, or as long as the manufacturer requires. Meanwhile, remove baseboards and the old floor, and undercut door casings to the thickness of a plank plus underlayment.
Prepare and lay out the subfloor
Screw down any squeaky plywood, sand high joints and fill lows with floor patch. Vacuum thoroughly. For glue-down over concrete, test moisture and clean off paint and sealers. Snap a chalk line one plank width plus the expansion gap from the start wall, correcting for any bow in the wall so the first row is dead straight.
Rack the boards and set the first row
Open several cartons at once and lay planks out loosely to mix colour and length, staggering end joints by at least 6 in and avoiding repeating patterns. Place the first row along the chalk line, groove toward the wall with spacers in place, and face-nail it near the wall where baseboard will cover, or glue it on the trowelled bed for a glue-down floor.
Install the field with cleats or adhesive
For nail-down, drive one 18-gauge cleat through the tongue every 6 to 8 in and within 2 in of each end, adjusting the nailer pressure so cleats seat without splitting. For glue-down, spread adhesive with the specified trowel over an area you can cover within the open time, lay planks into the wet bed and keep the tongues tight with a tapping block. Wipe squeeze-out immediately.
Cut around obstacles and doorways

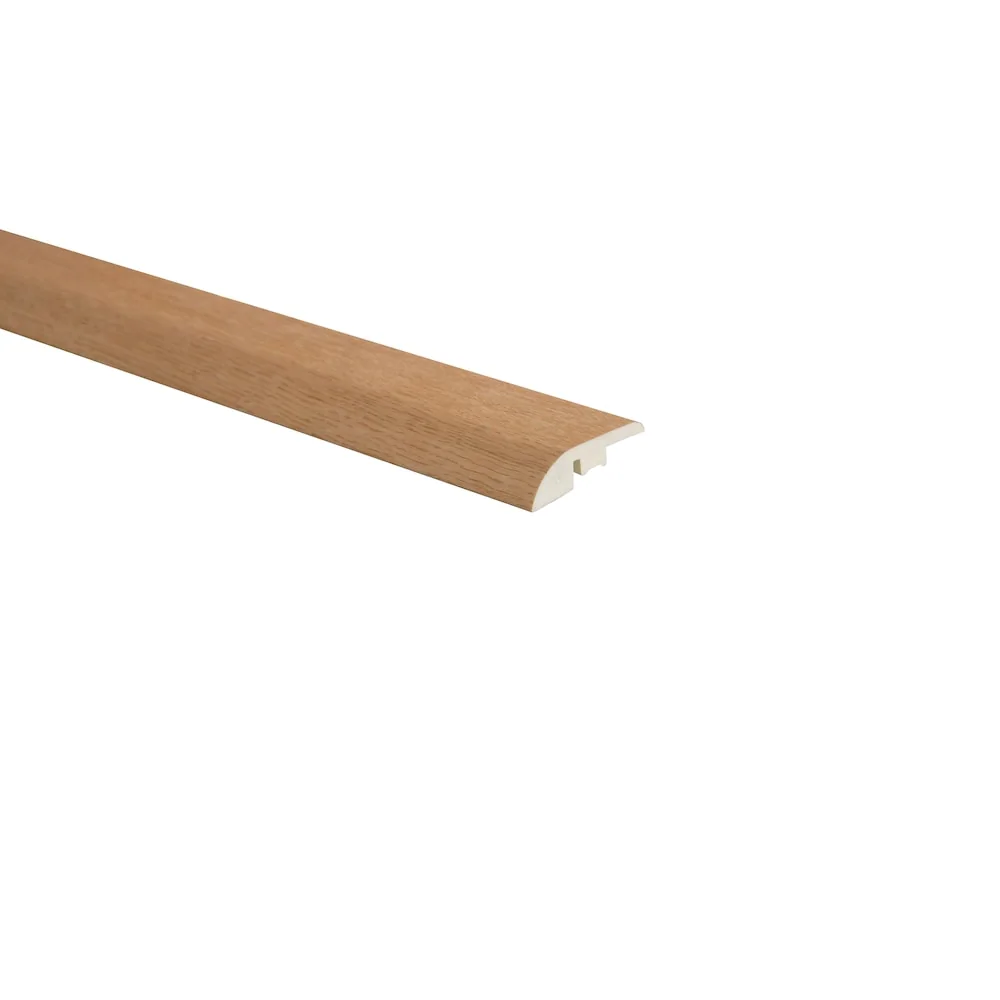

Scribe and jigsaw around vents, pipes and door jambs, leaving the expansion gap wherever the plank cannot be covered by trim. Slide planks under the undercut casings for a seamless look. At doorways, stop the floor to leave room for a T-moulding or reducer track.
Finish the last rows

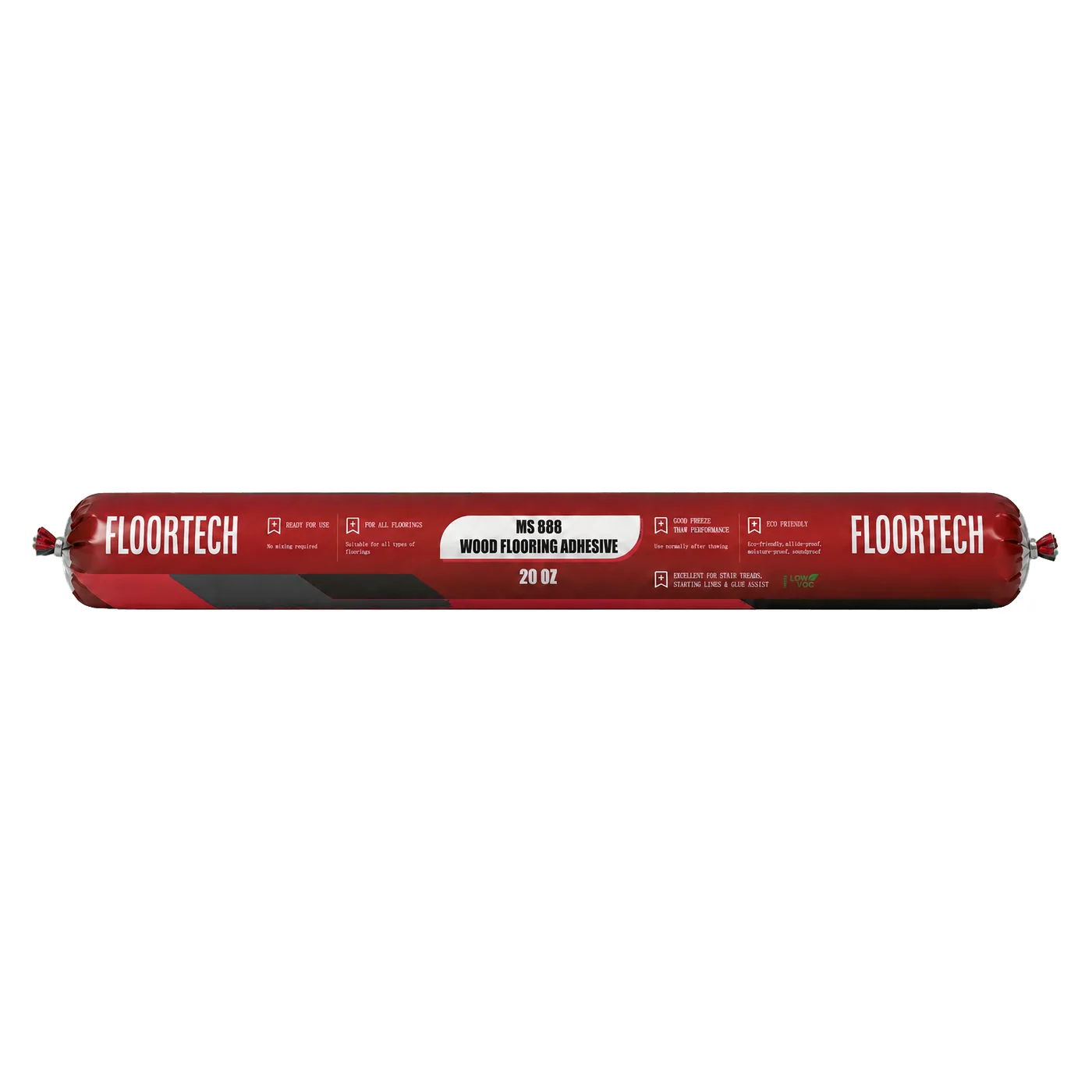

The last rows are too close to the wall for the nailer. Rip the final row to width, keeping the expansion gap, and face-nail it with brads where trim will hide them, or glue it with the sausage adhesive. Use the pull bar to close the joints without marring the plank edge.
Install nosings, transitions and trim

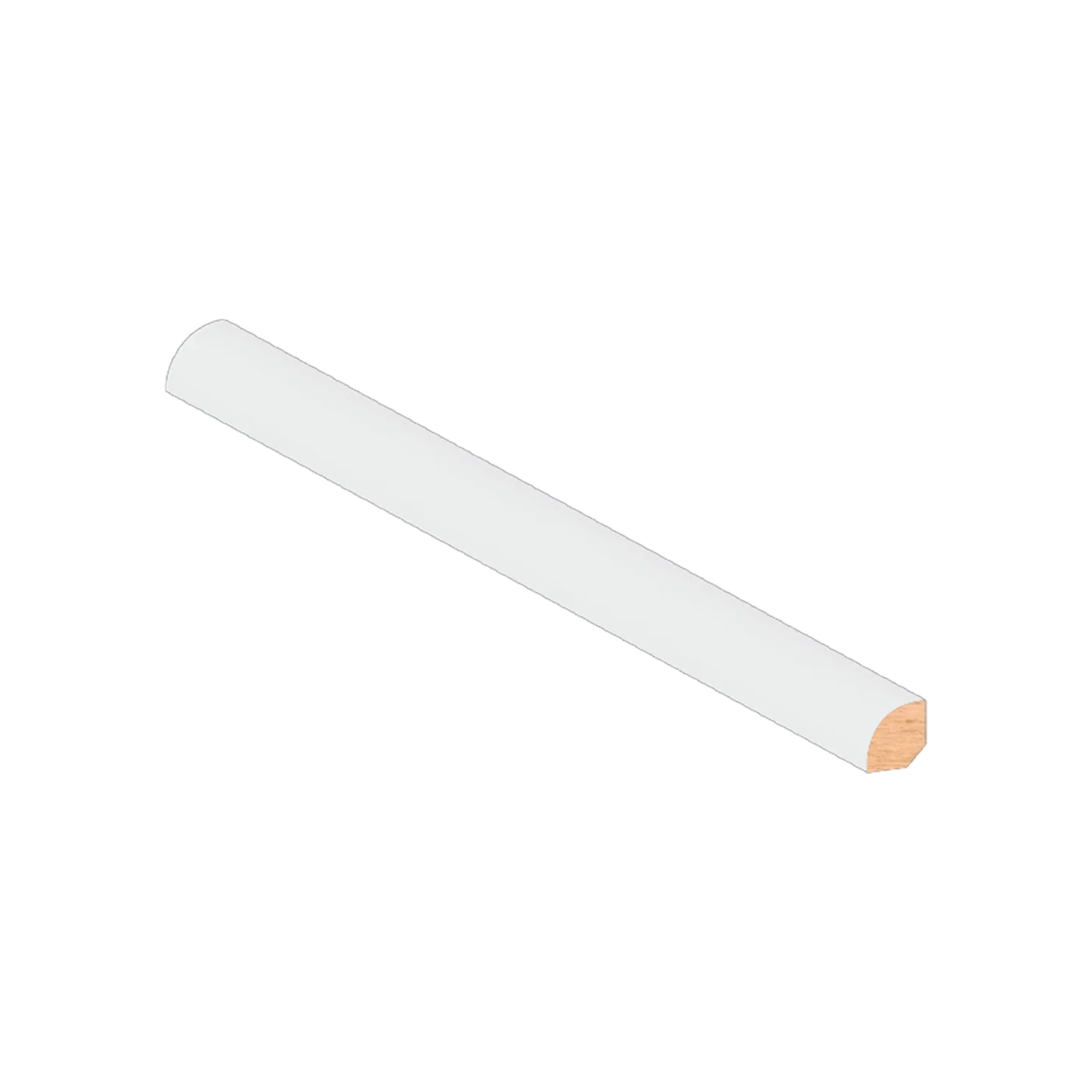

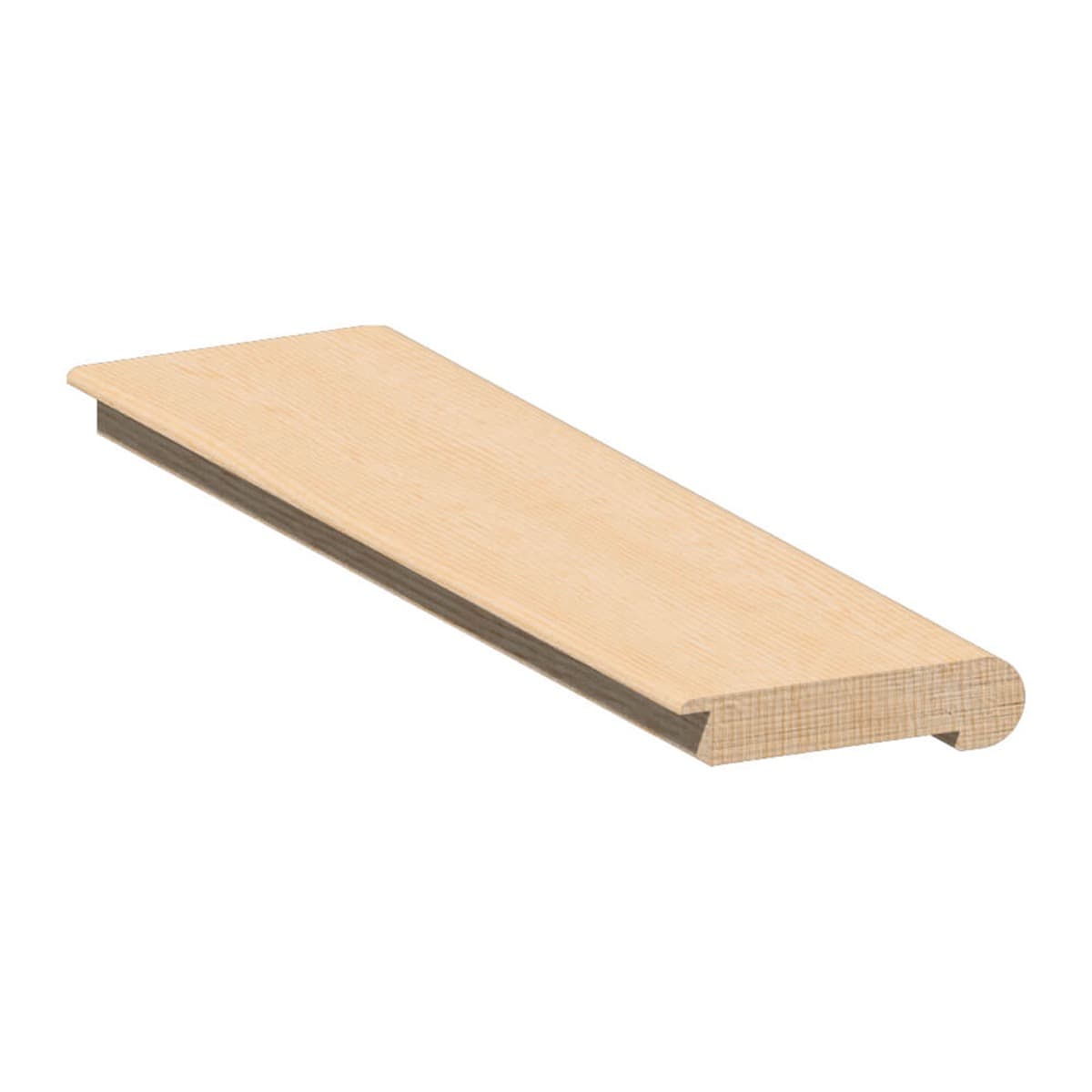

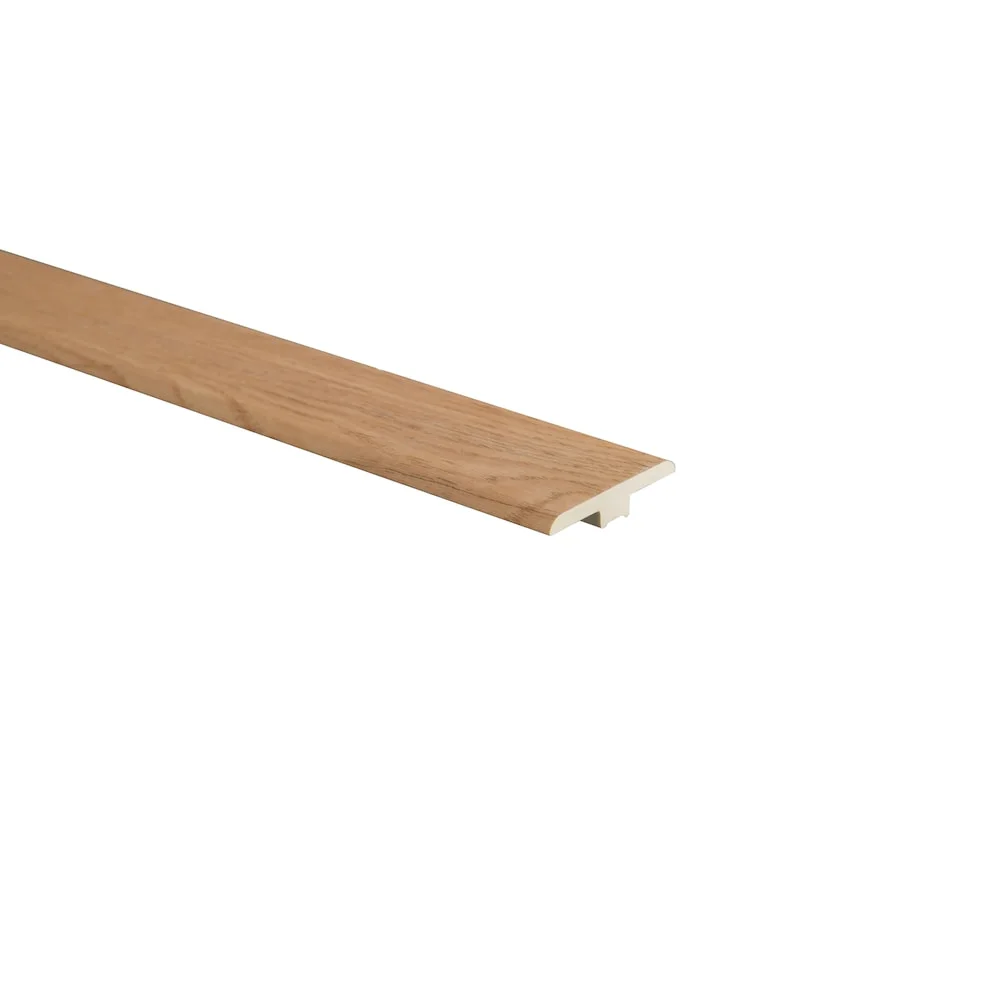

Fit stair nosings to landings and top steps, glued and nailed per the instructions. Set T-mouldings and reducers in their tracks at doorways. Reinstall baseboards and add shoe or quarter-round, nailing into the baseboard, never into the floor, so the planks stay free to move. Protect the finished floor while other trades finish.
Common mistakes
Skipping acclimation
Planks that gain or lose moisture after installation cup or gap. Three days in the room is the cheapest insurance.
Nailing shoe moulding into the floor
Pinned planks cannot expand and will buckle or crack. Nail trim to the wall or baseboard only.
Ignoring subfloor flatness
Hollow spots under a wide plank creak and flex. Patch and sand before laying a single board.
Random cleat pressure
Too much pressure splits tongues; too little leaves cleats proud and the next row will not seat. Test on scrap.
Working glue-down too far ahead
Adhesive that skins before the plank lands never bonds. Spread only what you can cover in the open time.
Project FAQ
Can engineered hardwood go in a basement?

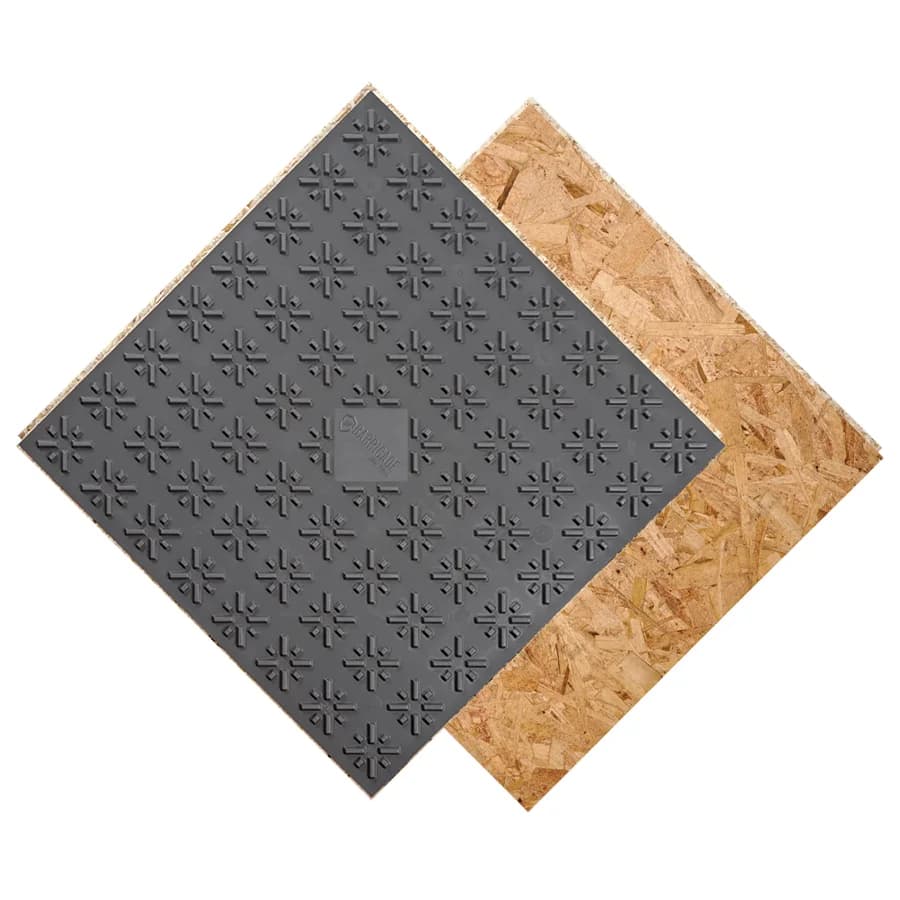

Yes, over a dry slab with a moisture test within the adhesive maker’s limit, or on raised subfloor panels for a nail-down installation. Solid hardwood should not.
Do I need underlayment?
Nail-down floors use a vapour retarder paper or the manufacturer’s pad. Glue-down floors rely on the adhesive and usually need none. Follow the product instructions.
How much expansion gap is enough?
Most manufacturers specify 1/2 in at every wall and fixed object. Wide planks and large rooms sometimes need a T-moulding to break up a long run.
Can I refinish a 2 mm wear layer?
A 2 mm wear layer can take a light screen and recoat, and sometimes one careful sanding. It is not meant for repeated refinishing like solid wood.
Which direction should the boards run?
Perpendicular to the joists for a nail-down floor, and generally parallel to the longest wall or toward the main window for the best look.
