How to Soundproof a Shared Wall with Mineral Wool and Resilient Channel
Cut noise through a bedroom, basement or townhouse wall by combining mineral wool insulation, resilient channel, a second layer of drywall and careful sealing.
Sound moves through a wall in two ways: as airborne noise through gaps and thin materials, and as vibration carried by the studs from one face to the other. A wall that treats only one path disappoints. The reliable recipe adds absorption in the cavity, decouples the new drywall from the framing with resilient channel, adds mass with a second layer of board and seals every gap so air cannot carry sound around the assembly.
Set a realistic goal. Normal conversation and television through a shared wall can be reduced to a murmur with this plan. Deep bass from a subwoofer or a mechanical room needs heavier construction, and noise that enters through a shared ceiling or floor will remain. Walk the room and find every path before deciding what to build.
This plan is written for a wall you can open or that is already bare framing, such as an unfinished basement or a room during renovation. Over existing drywall, the same approach works by adding channel and a new board layer, at the cost of about 1-1/2 in of room depth and some adjustment to outlets and trim.
Measure the project
Multiply wall length by height in feet. Subtract doors but not outlets or small openings.
Rockwool Safe’n’Sound batts for 2x4 walls at 16 in centres cover about 59.7 sq. ft. per bag. Divide the wall area by that figure and round up.
Run channel horizontally every 24 in, starting 2 in from the floor and ending 6 in from the ceiling. Multiply the wall length by the number of runs and buy 12 ft lengths to suit.

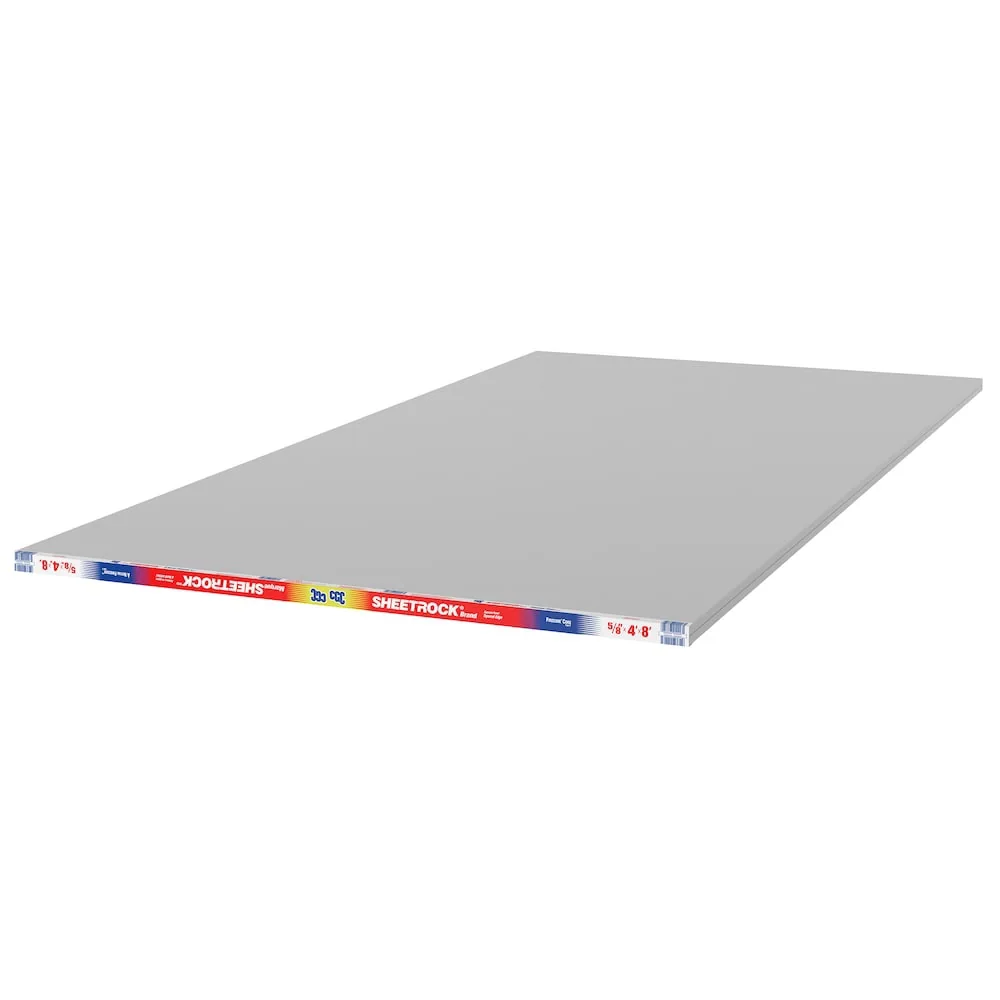

Two layers of 5/8 in Type X board. Divide wall area by 32 sq. ft. per 4 x 8 sheet, double it for two layers, and add one sheet for cuts.
Acoustic sealant for the perimeter of each layer, around boxes and at the floor: roughly one 300 ml cartridge per 20 linear feet of joint.
Shop the material list
Choose products that match the exact room conditions and manufacturer instructions. These catalogue picks give you a practical starting point.
Have these ready
- Tape measure and chalk line
- Stud finder
- Utility knife and insulation knife
- Drill and driver
- Fine-thread drywall screws, 1-1/4 in and 1-5/8 in
- Pan-head screws for channel
- Tin snips
- Drywall T-square
- Drywall lift or a helper
- Caulking gun
- Taping knives and mud pan
- Dust mask, gloves and eye protection
Build it in the right order
Map the sound paths and the wall
Stand in the quiet room while someone talks in the noisy one. Note whether sound arrives through the wall, around a door, through outlets or along the ceiling. Mark every stud, outlet, switch, and any duct or pipe in the wall. Decide whether you are opening the wall or building over it, and plan how outlets will be extended.
Seal the framing before insulating

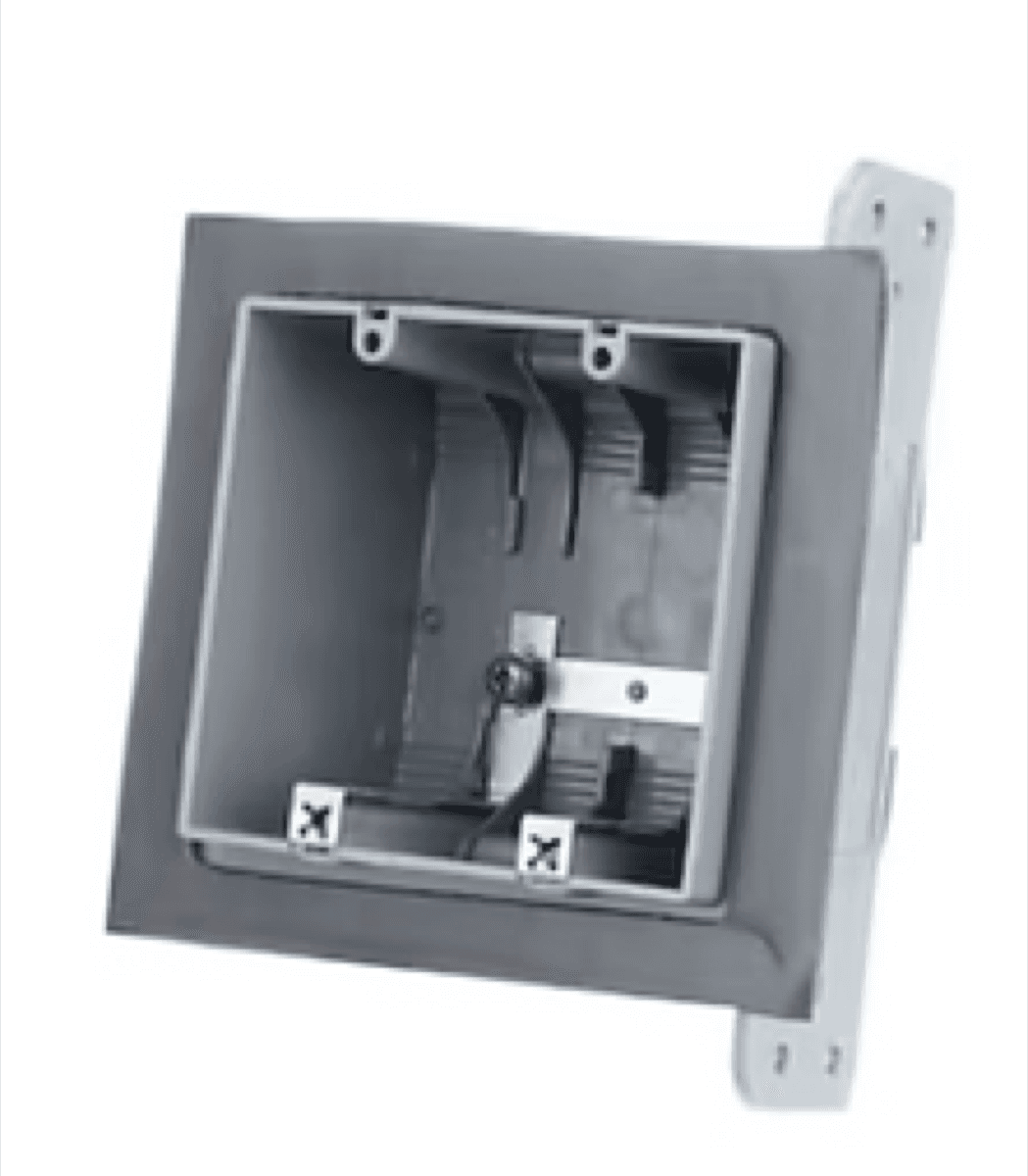

With the cavity open, seal the gap where the bottom plate meets the floor and the top plate meets the ceiling with acoustic or flexible sealant. Fill any holes where wires or pipes pass through plates. Replace open electrical boxes with sealed vapour boxes and seal the cable entries.
Fit the mineral wool
Measure each cavity and cut batts 1/2 in oversize with a long serrated knife. Press them in so they fill the full depth without compressing, splitting the batt around wires rather than stuffing it behind them. Fill the small cavities beside windows and doors too; an empty bay is a weak spot.

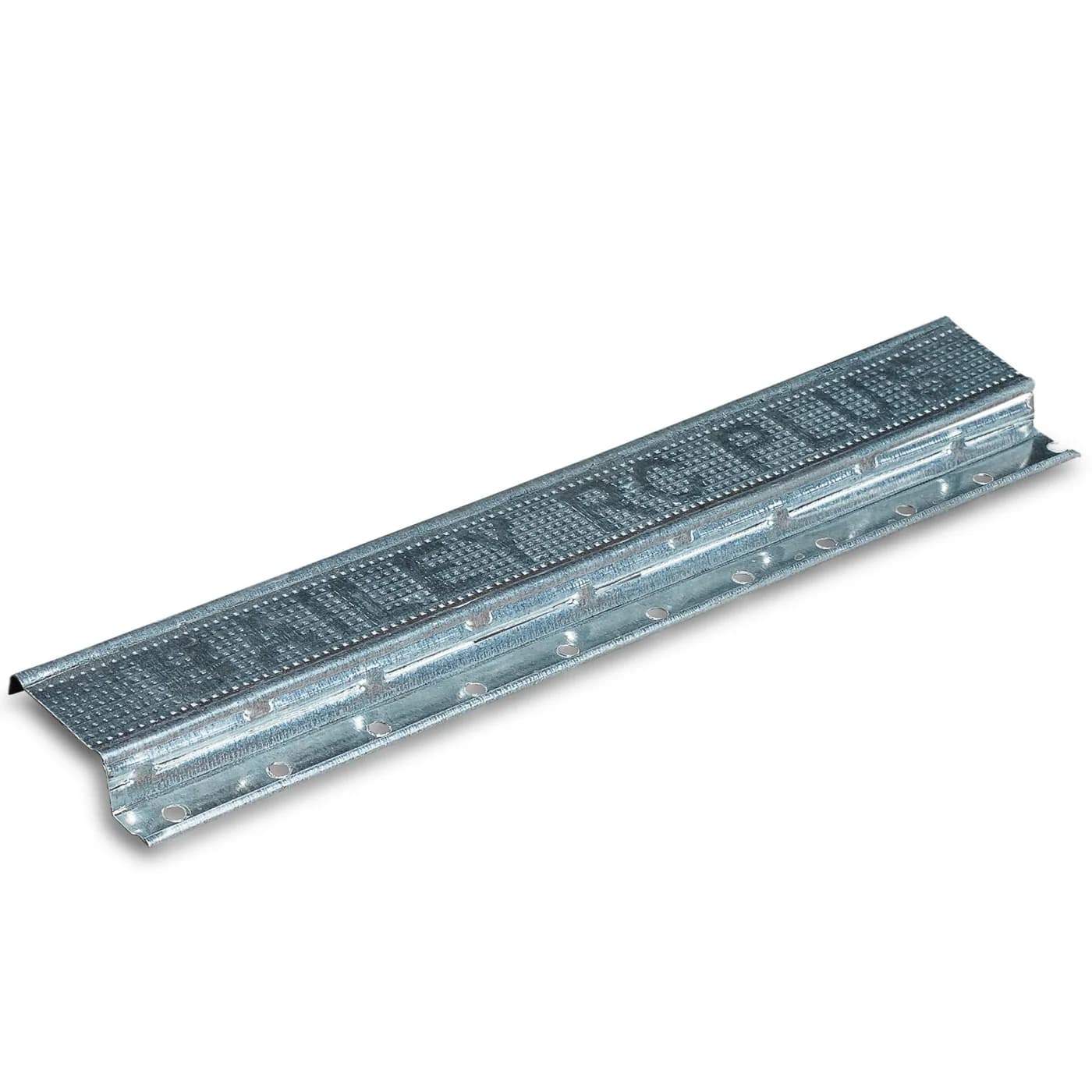

Install resilient channel
Snap level lines every 24 in up the wall, starting 2 in above the floor. Screw the channel to each stud through the single mounting flange with pan-head screws, keeping the open flange pointing up and running the channel continuously across the wall. Never screw through both flanges, and keep channel 1 in short of each adjoining wall so it floats.
Hang the first layer of drywall
Hang 5/8 in board horizontally on the channel using 1-1/4 in fine-thread screws every 12 in into the channel only, not into the studs. Leave a 1/4 in gap at the floor, ceiling and side walls so the board floats, and fill that gap with acoustic sealant. Cut outlet openings tight and seal around them.
Hang the second layer offset
Hang the second layer with seams offset at least 24 in from the first layer, using 1-5/8 in screws into the channel. Keep the same floating perimeter gap and seal it. Extend outlet boxes with box extenders so the devices sit flush with the new face.
Finish and reinstall trim

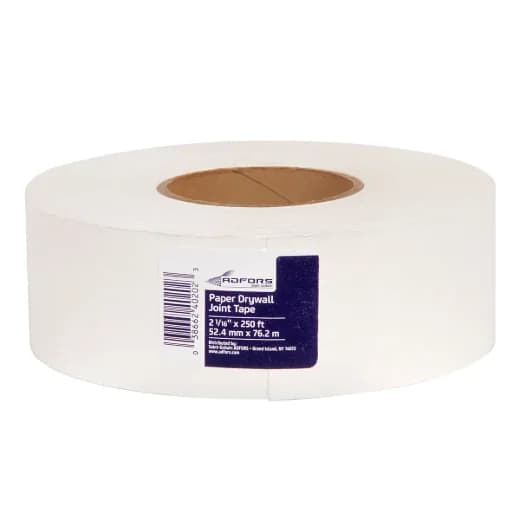

Tape and finish the outer layer seams with three thin coats, prime and paint. Caulk the baseboard and casing lines with flexible sealant before painting. Add a door sweep and perimeter weatherstrip to the room door, since a hollow door with a gap under it undoes much of the wall work.
Common mistakes
Screwing drywall into the studs through the channel
One long screw short-circuits the decoupling for the whole sheet. Use screws that reach the channel only.
Leaving the perimeter unsealed
Air gaps carry sound around even a heavy wall. Seal every edge of every layer.
Compressing the insulation
Over-stuffed batts transmit vibration. Fit them snug, not crushed.
Ignoring the door and outlets
A hollow door with a gap is the loudest part of most rooms. Treat the openings or the wall work is wasted.
Expecting one layer to do the job
Mass matters. Two layers of 5/8 in board on channel outperform a single layer on any wall.
Project FAQ
Will this stop my neighbour’s bass?
It will reduce it, but low frequencies need heavy, deep assemblies and often travel through the floor and ceiling as well. Expect a clear improvement for voices and television and a partial one for bass.
Can I use fibreglass instead of mineral wool?
Fibreglass batts help, but mineral wool is denser and performs better in the cavity, especially with the same channel and double board.
Is resilient channel better than clips and hat channel?
Clips with hat channel decouple slightly better and tolerate installation mistakes. Resilient channel is less expensive and effective when installed correctly with no screws reaching the studs.
Do I need a permit?
Adding insulation and drywall to an interior wall normally does not, but moving electrical boxes or building a new partition may. Check with your municipality before starting.
How much room depth will I lose?
Channel and two layers of 5/8 in board add about 1-3/4 in. Over existing drywall, allow for that at casings, baseboards and outlets.
